How to create a curved head liner in Integrate ?

This guide explains how you can draw a curved head liner within Integrate.

Step 1. Create a new drawing

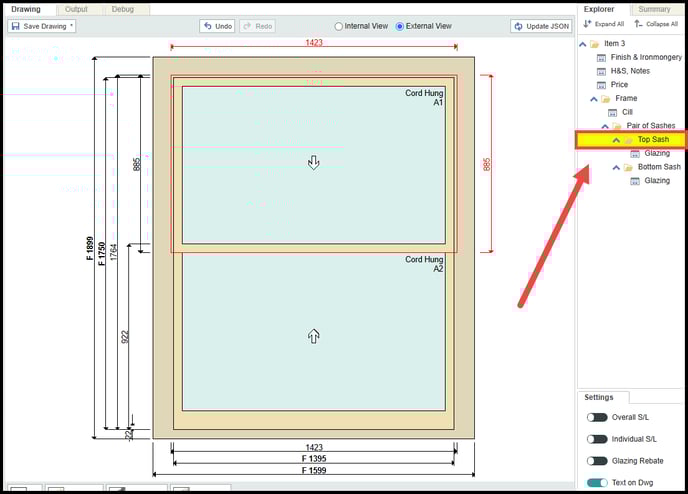

Step 2. Select the 'Top Sash' by either using the 'Explorer' on the right hand side of the screen or by directly clicking on the top sash within your drawing.

Step 3. Now you have your top sash selected, move over to the 'Property Editor' on the left hand side of your screen.

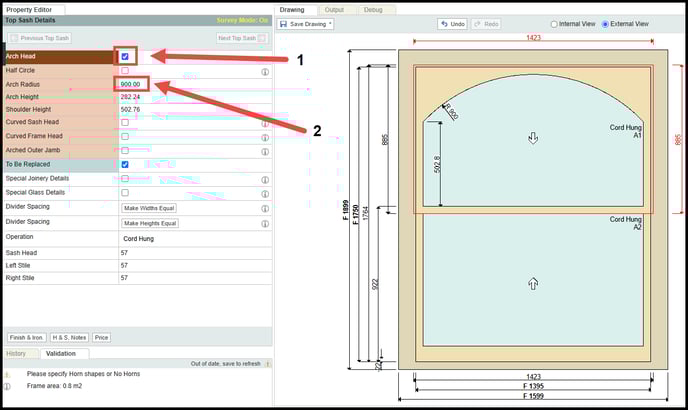

  • Select the 'Arch Head' option
  • Set an 'Arch Radius' e.g. 900mm

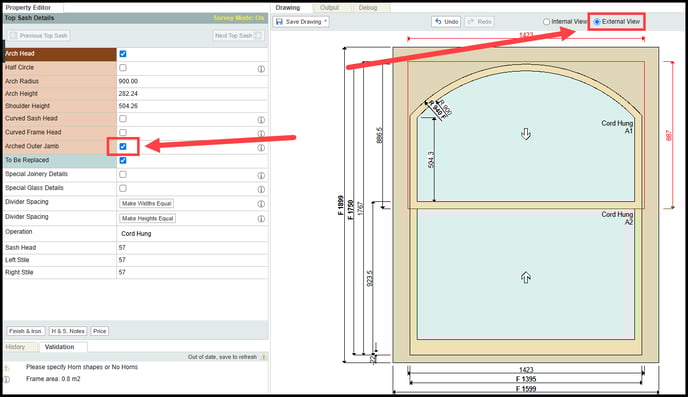

Step 4. Making sure you have the 'External View' Selected. Finally you will want to tick the 'Arched Outer Jamb' tick box
